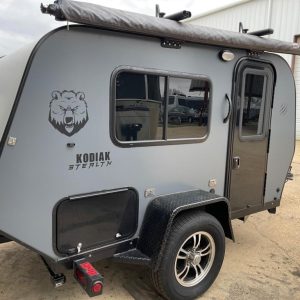

  • 2020 Rustic Trail – Kodiak Stealth ($12000.00)

    KODIAK STEALTH SPECIFICATIONS Interior Width 5′ (58) Interior Length 10′ (115) Interior Height 5′ (58) Total Exterior Width – Tire to Tire 80 Total Exterior Length – Tongue to Back 13′ Total Exterior Height – Ground to Standard Air Vent 80.5 Total Exterior Height – With Optional Deluxe Air Vent 82.5 Total Exterior Height – With Optional Roof Rack 84 Dry Weight – Cabinet & bed/dinette package 1,525 Lbs. Tongue Weight 183 Lbs. Carrying Capacity – Depending on Options 1,465 Lbs. GVWR 2,990 Lbs. Axle Type Heavy Duty Leaf Spring (Trailer frame: Utility frame construction of Cold-rolled steel. Gloss black paint coating.) Tire Size 15 Tires ST205/75R15 mounted on black steel rims – aluminum rims optional Ground Clearance 14 Flat Fender Weight Capacity 300 Lbs. Ball Height – 2 Ball Required 17 – 18 From the ground to the top of the ball Bed Size – RV Queen 73 long x 58 ½ wide (3 dinette cushions convert into bed) Dinette Table Size 20 wide x 35 long Window Size 37 wide x 21 tall Main Door Opening 22 wide x 54 tall Cargo Hatch Opening (Dual) 22 Wide X 11.5 Tall Dinette Seat(s) Size 19 ½ wide x 35 long x 15 tall (each seat) Camper Sidewalls Grey exterior – ¾” exterior grade plywood with aluminum on the outside and HPL (mid 2021) on the inside Exterior Roof Material .040 aluminum – Choose between silver or white PV coated Lower Front Cabinet Size Depth 17 ½” x Length is 36” Shelf Above A/C Height 9 3/4” x Depth 19” x Length 22½” ; Clearance from floor to bottom of the shelf is 19” Upper Front Cabinet Size Length of 58 ½” x Depth of 11” x Height of 8” Exterior Diamond Plate Color: Black Optional Roof Rack Load Capacity 350 Lbs. max A Frame Trailer Box Back-36 Front-18 Width-19.5 Height-18 (weighs: 20 Lbs.) Battery Type AGM Deep Cycle LDC 12-115-G31 BCI Group 31 (weighs: 70 Lbs.) Outside Table 35 long x 19 wide (weighs: 15 Lbs.) A/C Unit 5,000 BTU – Front face is 16 wide x 11 tall (weighs: 40 Lbs.) Optional Awning 8.2FT long x 8.2FT wide (weighs: 35 Lbs.) 2 Rear Receiver Weight Limit 250 Lbs. max Here are Van.Life we want to raise the bar for new RV purchases. That’s why we give you 30 man hours of thorough testing with every new RV purchased off our lot. Our pre-delivery inspection is NOT a gimmick. We see the horror stories out there and want to simulate a week of use before we hand you the keys. This prevents lengthy service visits before you can enjoy your new vehicle. We believe that the RV industry has had a pass for delivering low quality control too long; there is no way people who pay the money they do for luxury Class B vans should have to endure the poor service they do. As a purchaser of a new van from https://van.life , we gaurantee that all possible steps have been taken to ensure the most pleasurable ownership experience possible. Ask about your available customizations with https://van.life ­-Agile Offroad- https://agileoffroad.com -Aluminess- https://www.aluminess.com -ARB USA- https://arbusa.com/products -Backwoods Adventure- https://backwoodsadventuremods.com -Baja Designs- https://www.bajadesigns.com – Canyon Adventure Vans- https://canyonadventurevans.com -Compustar / idatalink- https://www.compustar.com -Curt Manufacturing- https://www.curtmfg.com -Dometic- https://www.dometic.com/en-us/outdoor -FlareSpace- https://flarespace.com/collections/shop-camper-van-conversion-parts -Houghton- https://www.recpro.com/rv-air-conditioners -Lithionics- https://lithionicsbattery.com -LunoLife- https://lunolife.com -Owl Vans- https://owlvans.com -Mid-City Engineering- https://www.midcityengineering.com -Off Highway Vans- https://www.offhighwayvan.com -Renogy- https://www.renogy.com -Rhino Linings- https://rhinolinings.com -RoamRig- https://shop.roamrig.com -S&B Filters- https://www.sbfilters.com -Terra Wagen- https://www.terrawagen.com -Thule- https://www.thule.com/en-us -Van Compass- https://vancompass.com -VB Air Suspension- https://www.vbairsuspension.com/en -Zamp Solar- https://www.zampsolar.com -WeBoost- https://www.weboost.com ***Additional Charges May Apply***
