WEIGHTS & MEASUREMENTS
| 44E | |
|---|---|
| Exterior Length | 19'7" |
| Exterior Height1</sup | 10' |
| Exterior Width2 | 7'1" |
| Awning Length | 9'6" |
| Interior Height | 6'3" |
| Interior Width | 5'9.75" |
| Freshwater Tank Capacity4 (gal.) | 21 |
| Water Heater Capacity (gal.) | Continous |
| Holding Tank Capacity4 — Gray (gal.) | 21 |
| Fuel Capacity (gal.) | 24.5 |
| GCWR6 (lbs.) | 13,550 |
| GVWR (lbs.) | 9,050 |
| GAWR - Front (lbs.) | 4,101 |
| GAWR - Rear (lbs.) | 5,360 |
| Wheelbase | 144" |
| Cassette Toilet Capacity4 (gal.) | 5 |
| Sleeps9 | 2 |
CHASSIS
Mercedes-Benz® Sprinter Chassis
3.0L 6-cylinder, 188-hp, turbo-diesel engine, 7G-Tronic automatic transmission, 220-amp. alternator
On-demand 4WD w/Hi/Lo range, electronic stability, and traction control
4-wheel ABS brakes
Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
7-pin wiring connector
Optional Equipment:
Performance wheels and BF Goodrich® T/A® KO2 all-terrain tires
CAB CONVENIENCES
MBUX® touchscreen multimedia infotainment center w/navigation, Wi-Fi hotspot, intelligent voice control and rear camera
Cab seats armrests, adjustable lumbar support, adjustable headrest, and slide/swivel/recline
3-point seat belts
Dual airbags
DISTRONIC PLUS® (adaptive cruise control)
Power steering w/tilt wheel
Power mirrors w/defrost and turn signals
Power door locks w/remote
Power windows
12-volt powerpoints
Sunvisors
Folding privacy screens for cab door windows
Appliqué package
Keyless entry w/remote
Entry door assist handle w/Ram® Tough-Track™ mount
Rain sensor w/integrated wet wiper system
High beam assist
Active brake assist
Active lane keeping assist
Blind spot assist
Traffic sign assist
Dash charging station
INTERIOR
LED ceiling lights w/dimmer switch
Tinted dual-pane euro acrylic windows w/cassette shades
Deluxe powered ventilator fan w/rain cover
Systems monitor panel
USB charger points
RAM® Tough-Track™ mounts throughout
Heavy-duty vinyl flooring throughout
GALLEY
Removable counter extension
Laminate countertop
Portable single burner induction range top
3.0 cu. ft. (12V) compressor driven refrigerator/freezer

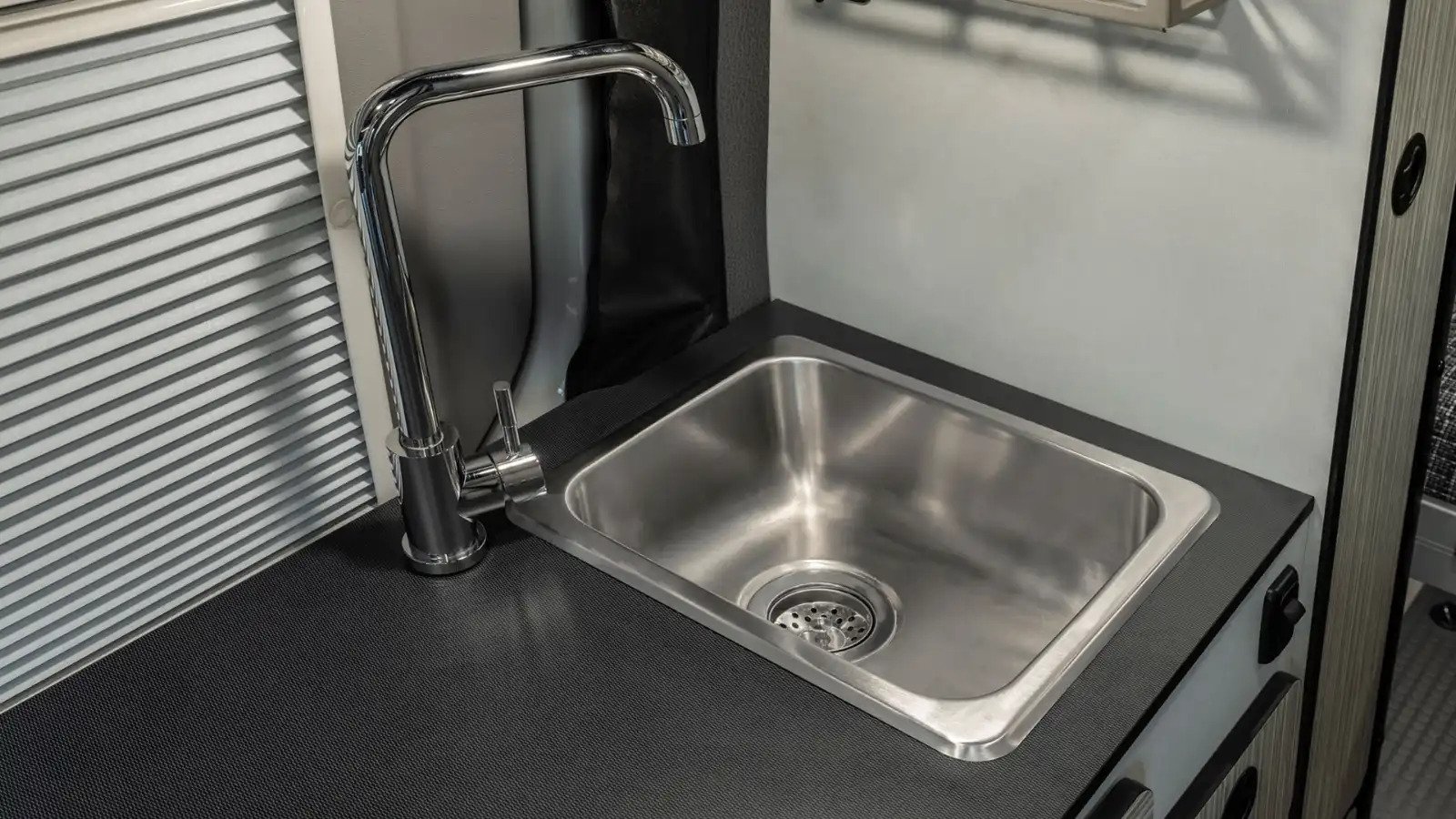

Stainless steel sink w/single control faucet
Pantry
Removable, pedestal dinette table
Full-extension drawers
BATH
Shower w/wall surround
Flexible showerhead
Shower curtain
Wet Bath 31″x26″
2 removable shelves convert to wet storage cabinet
Removable clothes rod
Swiveling cassette toilet
Powered roof vent
BEDROOM
Power Lift Bed w/molded pockets and zip storage below
Under-bed gear garage storage w/six removable cargo tie-down anchors
Powered roof vent
Reading lights
EXTERIOR
Side screen door w/magnetic closure system
Rear screen door w/blackout panel
Powered patio awning w/LED lighting and Bluetooth® control
Porch light w/interior switch
Running boards w/ground effect lighting and rubber trim
Rear mud guards
Movable ladder
Luggage Rack
Fold-down exterior table
HEATING AND COOLING SYSTEM
Hydronic Heating System w/LED touchscreen panel
Optional Equipment:
Coleman®-Mach® 10 NDQ air conditioner w/directional vents, Bluetooth® control and built-in thermostat
ELECTRICAL SYSTEM
AC/DC load center/converter
(2) 125-amp-hour Lithium ion batteries w/dedicated second alternator to charge system
Coach battery disconnect system
Dual-battery charge system
30-amp. power cord
Solar panel/battery charger
2,000-watt inverter/charger
Roof port wiring access
PLUMBING SYSTEM
Water center control panel includes all control valves, connection points and exterior wash station w/pump switch
Winterization Package with valve and siphon tube
On-demand water pump
Galley drain pump
Insulated/heated gray water holding tank
Potable water tank
SAFETY
Smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Daytime running lamps
High-mount brake lamps
WARRANTY7
12-month/15,000-mile basic warranty8
NOTES AND EXCLUSIONS
- The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of our vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
- Not applicable to this model.
- Not applicable to this model.
- Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
- Capacities shown are tank manufacturer’s listed water capacity (W.C.).
- Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes. Please refer to the Operator’s Manual of your vehicle for further towing information.
- See separate chassis warranty.
- See your dealer for complete warranty information.
- Sleeping capacity is the maximum based on a specific floorplan.
* Disclaimer: Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner’s manual whenever camping in freezing conditions.
Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.
In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
**Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.
